Underwater Pelletizers (UWG)

Features

Technical features

Low-wear operation with cutting gap between die plate and knife Optimized water box design to improve pellet quality Large doors on both sides of the cutting chamber for easy and fast rinsing of the die plate as well as short set-up times

Product information

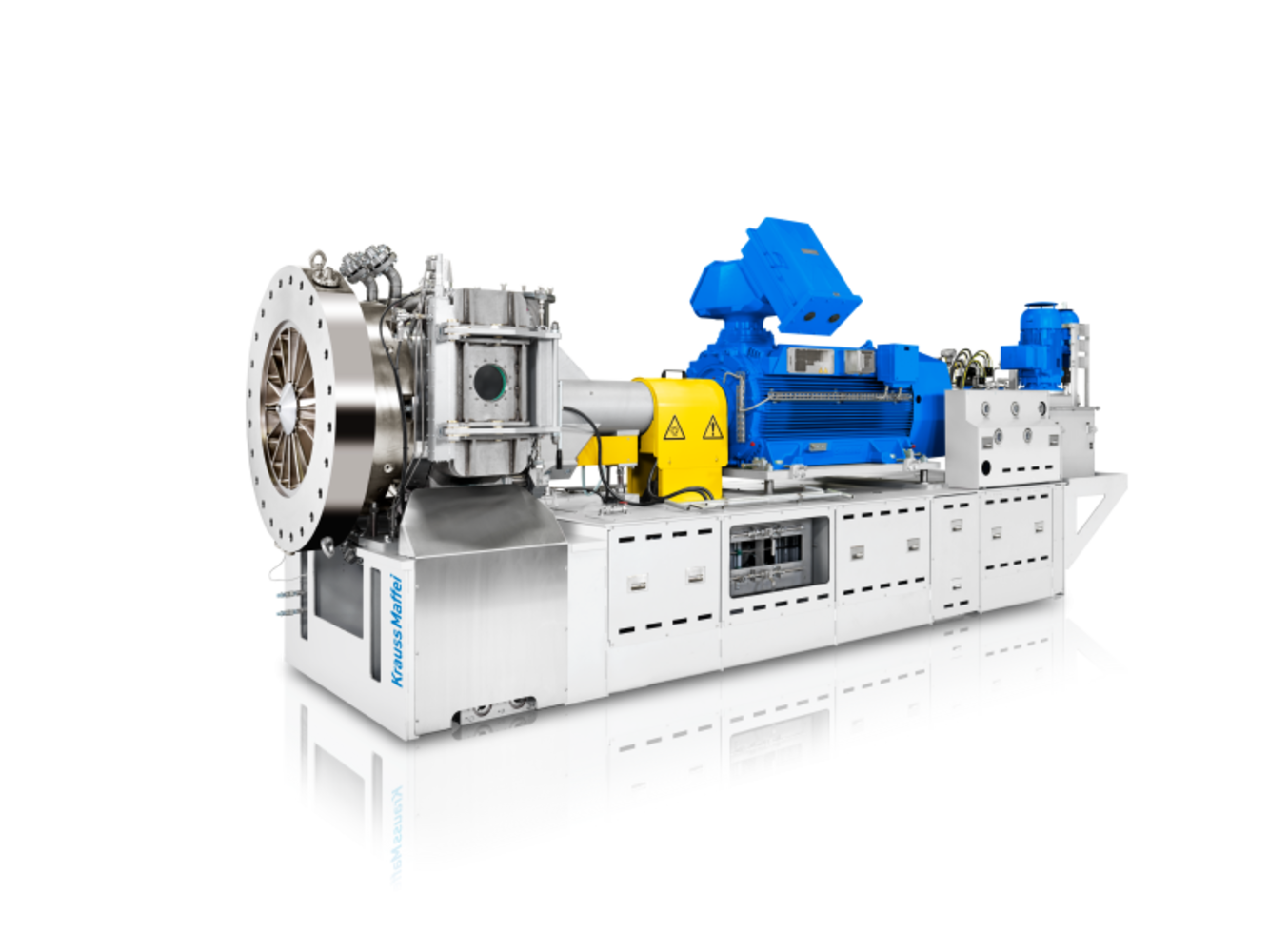

The compact and highly efficient underwater pelletizers UWG are mainly used in LDPE homopolymer and copolymer plants. In combination with KE single-screw extruders, they guarantee reliable and high-quality production.

Performance data

Screw-diameter: 250mm to 800mm

Throughput: from 10t/h to 74t/h

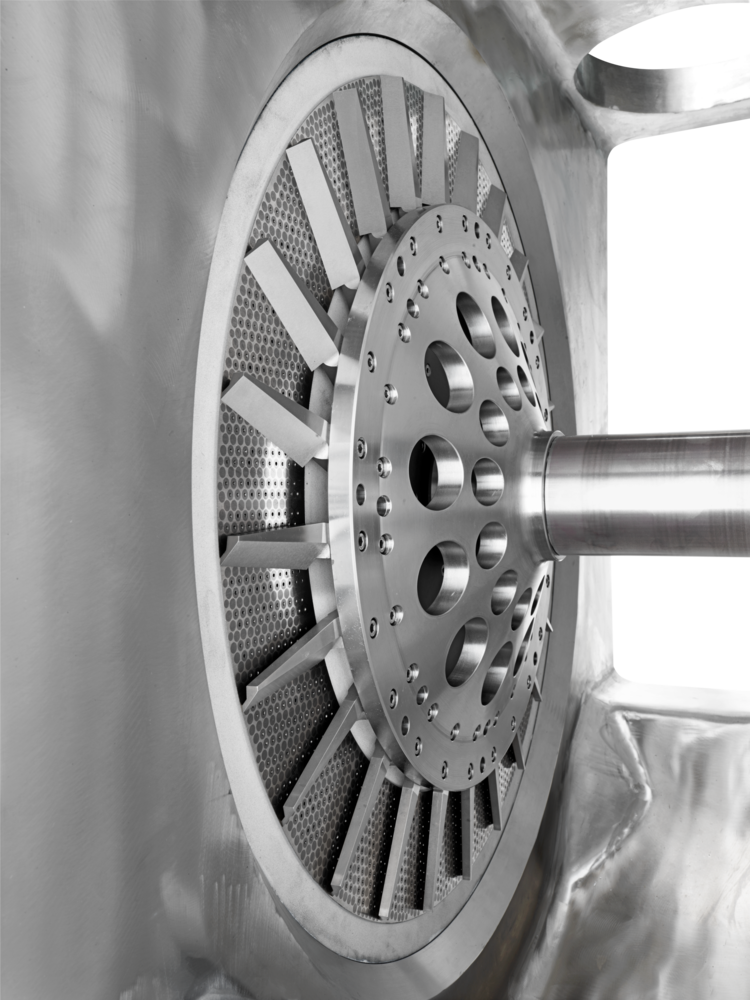

Two stage water chamber and cutting gap

Advanatages

Low-wear operation with a cutting gap between the die plate and the knife.
Optimized water chamber design to improve pellet quality.
Unique pelletizing concept with optimized die plates for excellent pellet quality.
Large doors on both sides of the cutting chamber for easy and quick rinsing of the die plate and short setup times.
Connection to discharge extruders and venting extruders is possible.
