Profile Extrusion
Product information
Whether you need window frames, rain gutters, cable ducts or custom technical profiles, KraussMaffei Extrusion delivers complete extrusion solutions—from 15 mm up to over 250 mm profile width. Our portfolio includes parallel and conical twin-screw extruders, coextruders, calibration and cooling equipment, hauloff units, inline saws and fully integrated control systems.
Every component is engineered for maximum throughput, energy and material efficiency, and outstanding product quality.
5,000 installed profile-extrusion lines
800 kg/h maximum output rate
32 L/D screw length ratios for optimum processing
- Turnkey extrusion lines from a single source
- Modular systems that grow with your needs
- Expert support for recipe development and line optimization
- 800 kg/h maximum output rate for PVC profiles
Why our Extrusion Line stands out

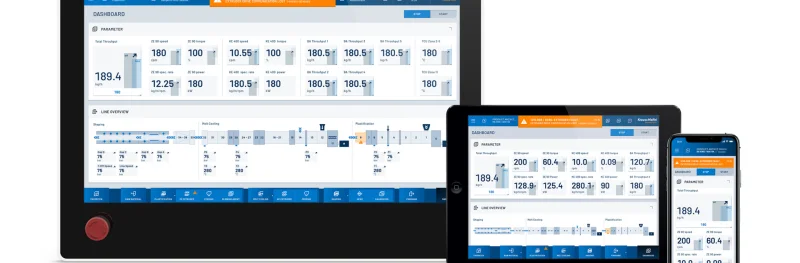

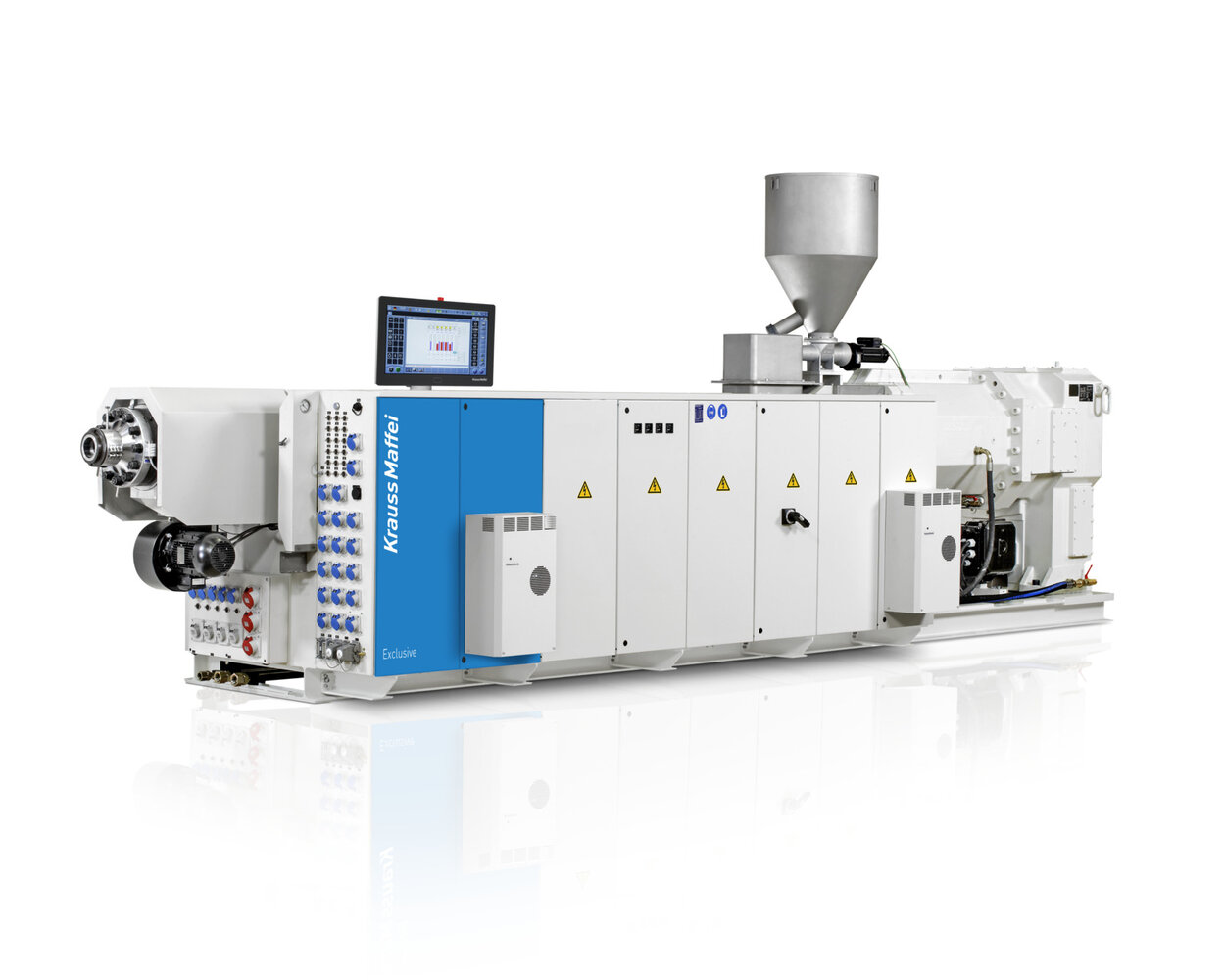

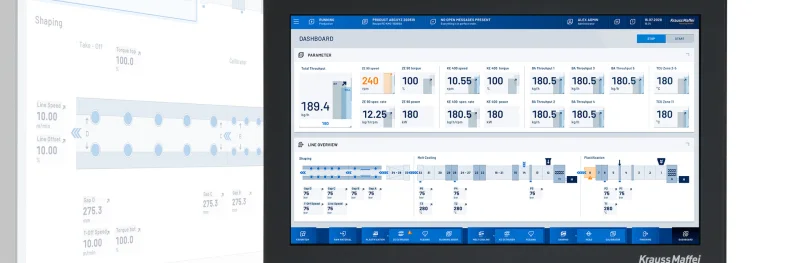

Our twin-screw and co-extruders, downstream modules, and the C6 control platform are globally proven and tailored to your requirements. Energy-efficient drives and optimized screw designs provide a wide processing window, even for highly filled or heavily pigmented compounds. Parallel twin screws (32 L/D) ensure high throughput up to 800 kg/h* with consistent quality, while conical twin screws handle flexible profiles. Co-extruders can be easily integrated, and the ppC multitouch HMI supports energy monitoring, recipe management, and ERP/MES connectivity for semi- or fully autonomous operation.
*Rated on PVC profile recipe.
Applications

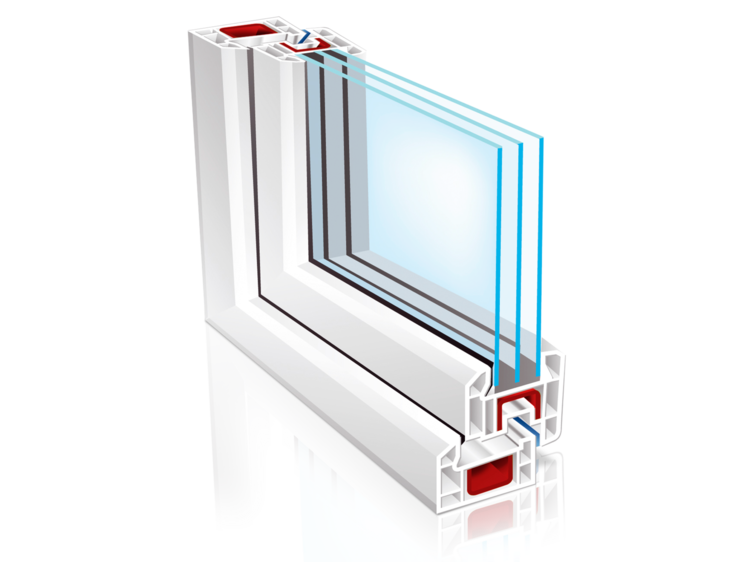

Window & Door Profiles
Line Configuration: Parallel 90 mm / 32 L/D (≈ 300 kg/h) + conical 43–63 mm coextruder
Benefits: Tight tolerances at 2.5–5 m/min, single or double strand, precise surface finish

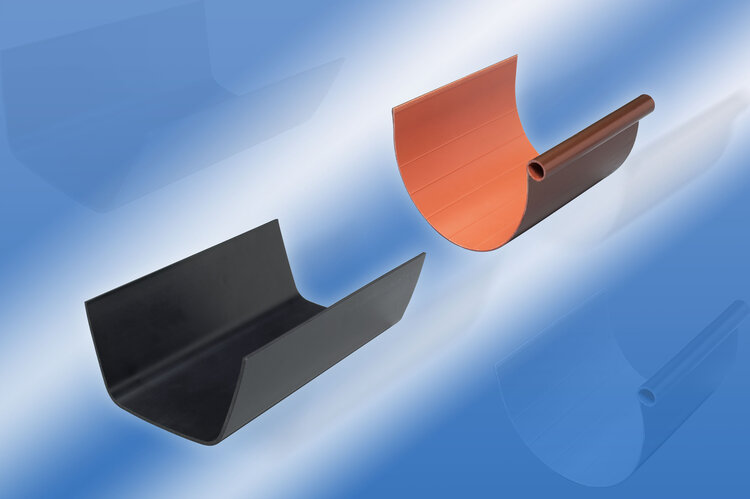

Rain Gutters & Siding
Line Configuration: Parallel 75–133 mm / 32 L/D (360–800 kg/h) + 43–63 mm co‑extruder
Benefits: High weather resistance, decorative colour layers, compact piggyback layouts

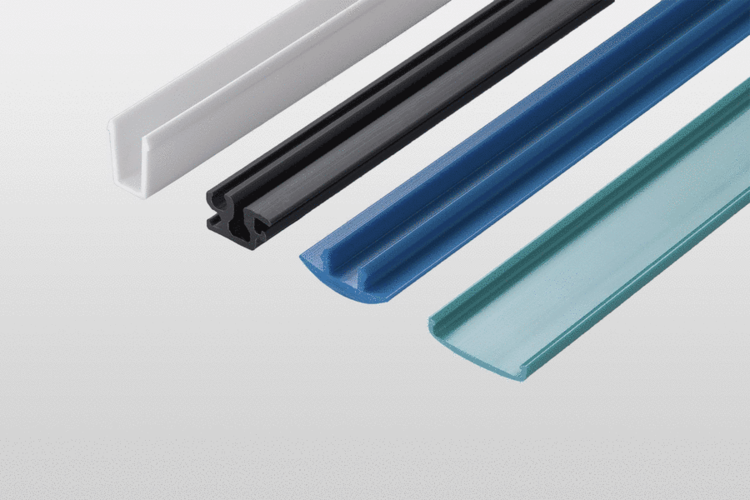

Cable Ducts & Technical Profiles
Line Configuration: Conical 43–63 mm or Parallel 75–90 mm, 1–4 strands, inline printing/lamination
Benefits: Full flexibility in width and strand count, inline customization modules

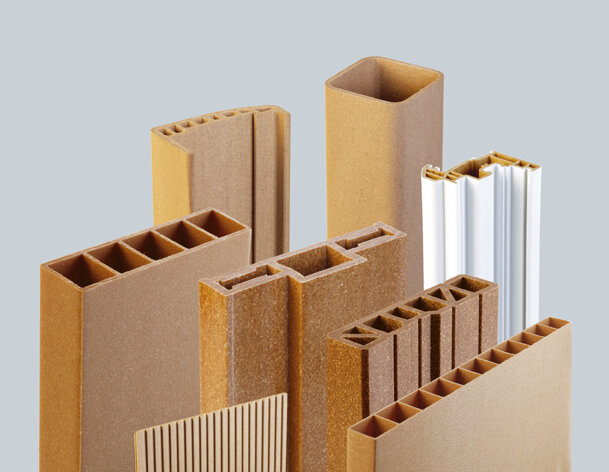

Specialty & High Fill Profiles
Line Configuration: Parallel 75–133 mm (32 L/D), high fill screw designs, Tungsten Carbide wear protection
Benefits: Process regrind and heavy filled compounds, minimal maintenance, maximum service life
Technology Center

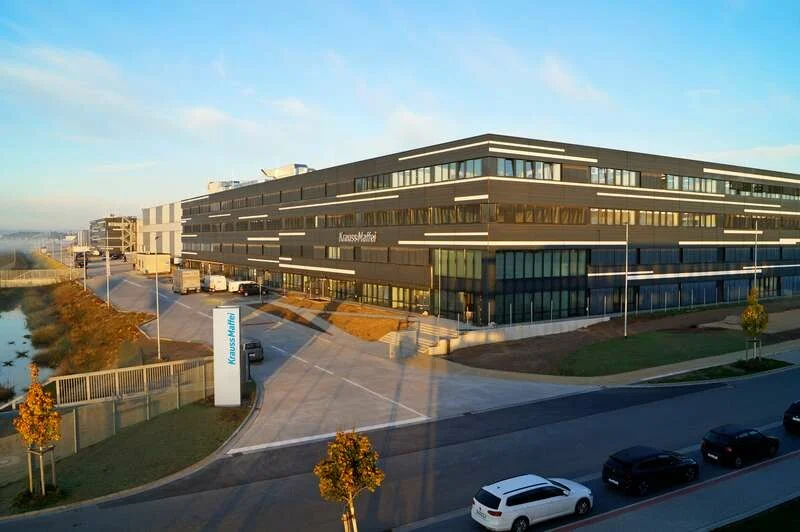

At our facility in Laatzen, we maintain one of the largest extrusion centers in the world. Offering space for 26 extrusion lines, the complete KraussMaffei Extrusion portfolio of machines and equipment is available for customers. For profiles, we provide parallel and conical twin screw extrudes. Additionally, we have the possibility to mix batches of individual compounds if necessary. So, if you want us to join your journey from an idea to a final product, you are more than welcome!
Turnkey Solutions
At KraussMaffei Extrusion we do not see ourselves just as a machine supplier. We understand our mission to be a reliable partner offering the best solution for you as a customer. This includes not only high-quality machinery, but also supporting your development in our Technology Center as well as joining you as a partner until your production is running. Integration of third-party components in our line and providing support during installation and start-up is a natural part of it.
